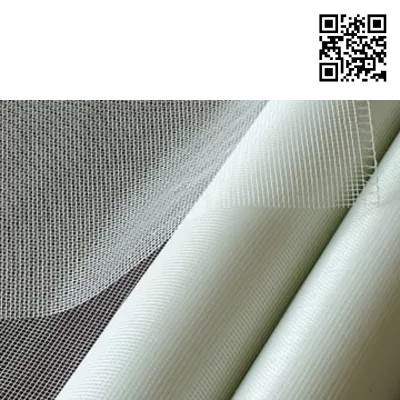

WATERPROOF REINFORCED GLASS MESH
Reinforced glass mesh is used to waterproof and prevent cracking in locations with frequent fluctuations
DESCRIPTION OF WATERPROOF AND CRACK-PROOF REINFORCED GLASS MESH
Reinforced glass mesh is a form of non-corrugated mesh used as a strength-enhancing material used in combination with liquid waterproofing agents, used for special waterproofing of locations and construction structures with fluctuations. move frequently.
The product is designed to allow the liquid waterproofing agent to penetrate thereby creating a high performance membrane system that can withstand the bi-directional forces between the top and bottom layers acting on it.
APPLICATIONS OF WATERPROOF AND ANTI-Crack REINFORCED GLASS MESH
Glass mesh will prevent the formation of crow's feet cracks, helping the wall surface always achieve the highest aesthetics
Use reinforced glass mesh as fabric reinforcement in many different application cases such as
Industrial floor covering system
Roof deck, water tank
Bathing and laundry area
Pool
In addition, it also prevents termite cracks for plaster walls
Plasterboard
Glass mesh with adhesive side
INSTRUCTIONS FOR CONSTRUCTION OF WATERPROOF AND ANTI-Crack REINFORCED GLASS MESH
Thin layer of mortar
Glass mesh
The mortar layer is complete
The choice of how much glass mesh to use depends on how thick or thin the mortar surface is (usually 30 x 30 mm). Large-sized glass mesh is suitable for walls with thick mortar layers, small-sized mesh is suitable for walls with thin mortar layers.
The glass mesh must be attached to the first layer of mortar while this layer of mortar is still wet. The mesh must be placed from top to bottom and the next panel overlaps the previous panel by at least 10cm.
Continue applying the second layer of mortar to complete the wall surface and use a spatula or iron to create a flat surface for the wall surface, at this time the glass mesh layer is completely covered.
Avoid impacting the wall surface until the wall surface is completely dry to avoid creating cracks and air bubbles while the wall surface is still wet.
Brick wall
Layer of insulation material
Thin layer of mortar
Glass mesh
Finished mortar layer
Decorative paint
When the outer surface of the wall is cracked, water molecules will follow the cracks and go inside, causing seepage to the wall. Using glass mesh for the outer surface of the wall will help prevent the formation of cracks on the surface to create aesthetics and keep the wall waterproof.
Brick wall
Thin layer of mortar
Glass mesh
Finished mortar layer
Decorative paint
Brick wall
Thin layer of mortar
Glass mesh
Finished mortar layer
Decorative paint
TECHNICAL SPECIFICATIONS OF WATERPROOF AND CRACK-PROOF REINFORCED GLASS MESH
Weight: 45 g/m2
Composition: fiberglass
Coating: Al Potassium
Mesh size: 3mm x 3mm
Tear resistance: 1000N/5cm
Roll size: 1 meter wide and 50 meters long
Roll surface area: 50 m2
